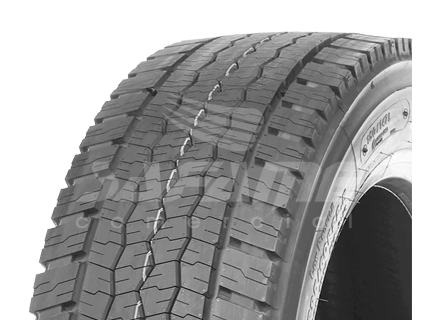

315/80 R22.5 ECOPIA H-DRIVE 002 156L/154M

BRIDGESTONE

Product sheet

Information

Code	BR4165
EAN	3286341350210
Model	ECOPIA H-DRIVE 002
Product type	Truck
Season	Summer
Tire position	Drive
Aplicación neumático	Long Haul
Retreaded	NO
Recommended rim	9.00 x 22.5
Pressure* (bar)*	9.00
Construction	Radial
FRT	NO

Load Index/ Speed Code

Load Index	156/154
Speed Rating	L/M
Load capacity 1 (kg)	4000
Load capacity 2 (kg)	3750
Speed (km/h)	120
Speed 2(km/h)	130

Dimension and weight

Dimension	31580225
Width (mm)	314.00
Diameter (mm)	1075.00
Rolling circumference (mm)	3267.00
Depth (mm)	13.00
Weight (kg)	65.40

European Label

Fuel efficiency	A
Wet grip	B
External rolling noise	A 70dB
EPREL	383621
3PMSF marking	SI
MS marking	SI

*Technical data are for information purposes only, may be subject to modifications by the manufacturer and are valid except in the case of typographical errors.

*The inflation pressure is always determined according to the load per tyre, the speed and the work to be performed. The following recommendations are given subject to subsequent modifications.
