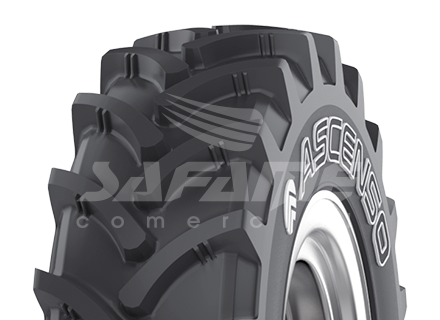

340/85 R36 (13,6R36) TDR850 TL 132D

ASCENSO

Product sheet

Information

Code	AS4210
EAN	8904365501412
Model	TDR850
Product type	Agriculture
Construction	Radial
TT/TL	TL
Recommended rim	W12
Accepted rim	W11
Pressure* (bar)*	1.60
Retreaded	NO

Load Index/ Speed Code

Load Index	132
Speed Rating	D
Load capacity 1 (kg)	2000
Load capacity 2 (kg)	NO
Recommended load at 25km/h (kg)	2370
Recommended load at 40km/h (kg)	2190
Recommended load at 65km/h (kg)	2000
Speed (km/h)	65
Speed 2(km/h)	NO

Dimension and weight

Dimension	340853613636
Width (mm)	353.00
Diameter (mm)	1492.00
Rolling circumference (mm)	4463.00
Depth (mm)	NO
Weight (kg)	82.40
Radio bajo carga (mm)	696.00

*Technical data are for information purposes only, may be subject to modifications by the manufacturer and are valid except in the case of typographical errors.

*The inflation pressure is always determined according to the load per tyre, the speed and the work to be performed. The following recommendations are given subject to subsequent modifications.
