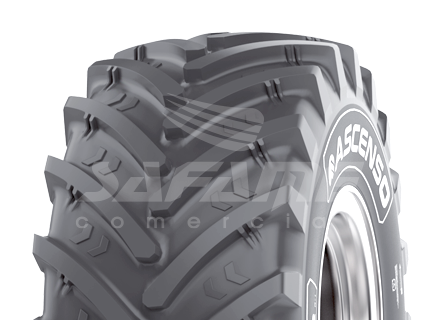

650/75 R32 HRR200 TL 172A8 SB

ASCENSO

Product sheet

Information

Code	AS4755
EAN	8904365505595
Model	HRR200
Product type	Agriculture
Construction	Radial
TT/TL	TL
Recommended rim	DW21B
Pressure* (bar)*	3.20
Retreaded	NO

Load Index/ Speed Code

Load Index	172
Speed Rating	A8
Load capacity 1 (kg)	6300
Recommended load at 25km/h (kg)	7480
Recommended load at 40km/h (kg)	6300
Speed (km/h)	40

Dimension and weight

Dimension	6507532
Width (mm)	655.00
Diameter (mm)	1789.00
Rolling circumference (mm)	5351.00
Weight (kg)	231.46
Radio bajo carga (mm)	809.00

*Technical data are for information purposes only, may be subject to modifications by the manufacturer and are valid except in the case of typographical errors.

*The inflation pressure is always determined according to the load per tyre, the speed and the work to be performed. The following recommendations are given subject to subsequent modifications.
